Let's Outfit your Swoop ASM

Swoop ASM Bundle

$300.00

MagicCarpet
PorterPack (on backorder)
CargoBay (single)

Bundle only available with purchase of a bike

Select accessories myself

Total: $0

PorterPack

$150.00

MagicCarpet

$75.00

RFA CargoBay
35L soft-sided bag, single

$75.00

BoomBox
40L structured bag, single

$125.00

$4,499.00

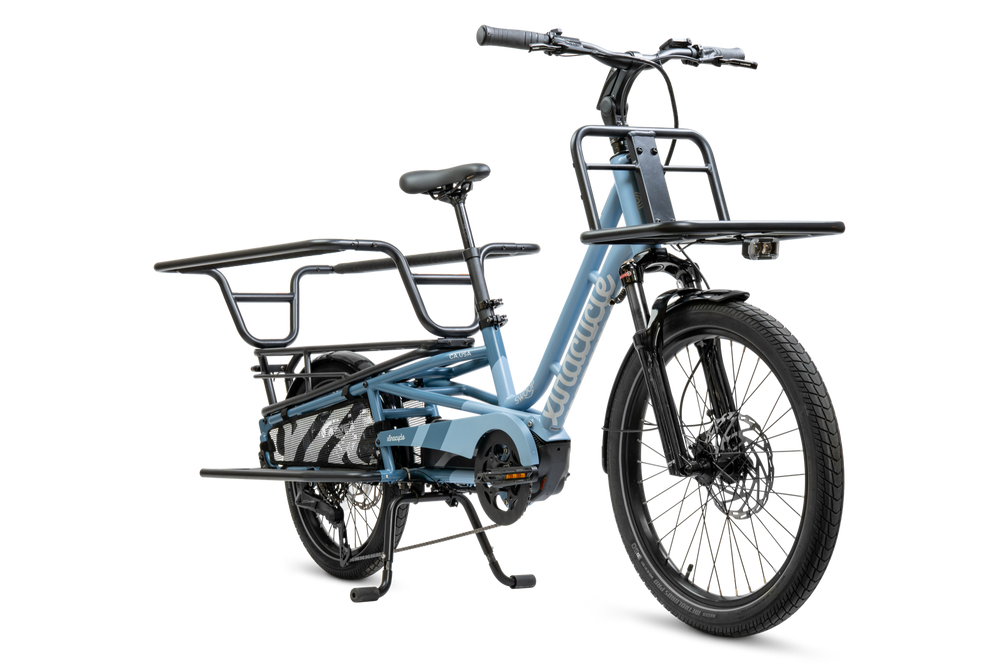

Swoop ASM

Name: Swoop ASM
Brand: Xtracycle
SKU: 1502300
Price: 4499.0 USD
Availability: InStock

$500-OFF Launch Special

Swoop ASM is here! Save $500 at checkout with our launch special. Use Code: LAUNCH500

The best electric family cargo bike for 2+ kids. 20+ mph capable, and essential accessories included. This bike will make your whole family smile.

Shipping March 31st

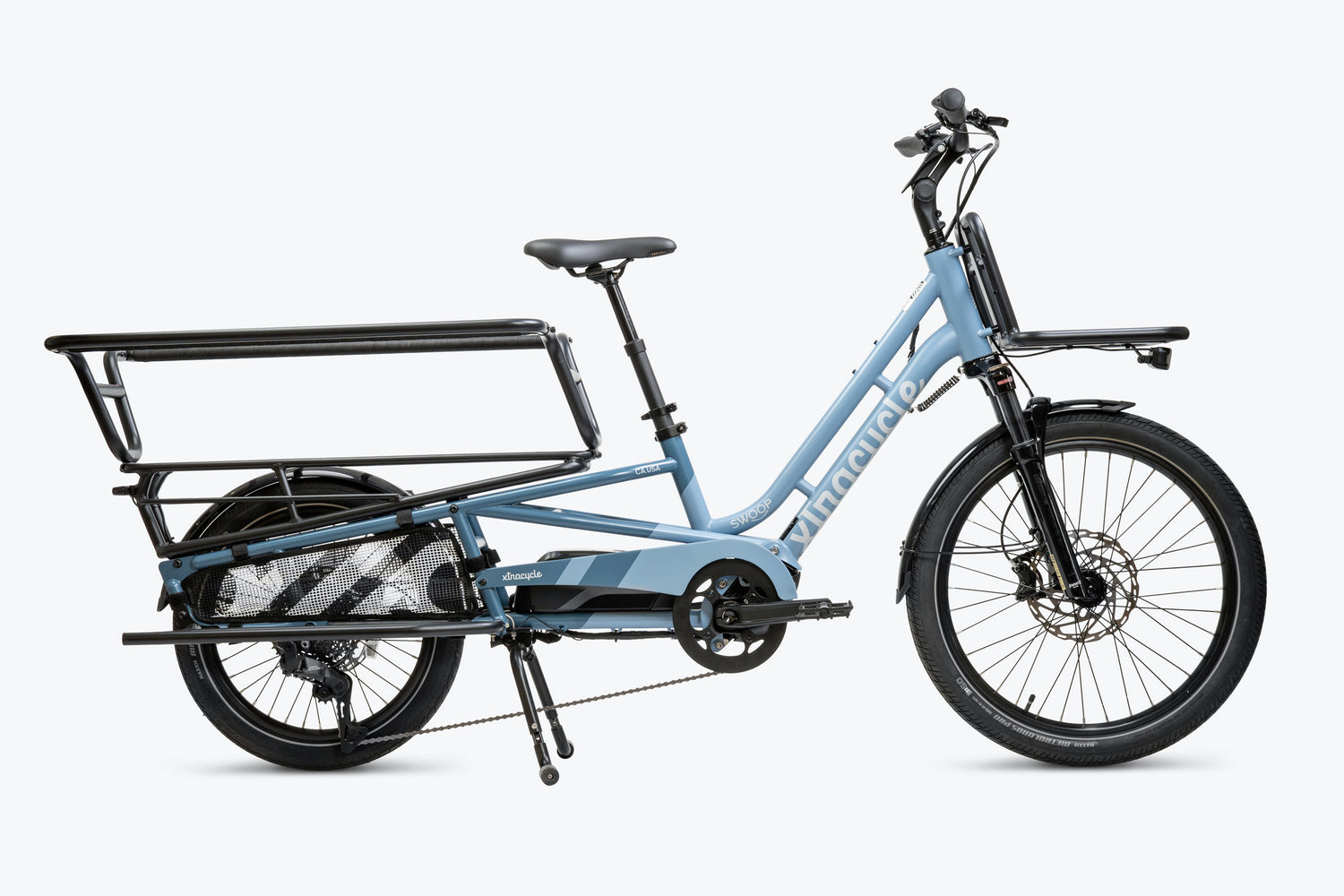

Pacific Blue

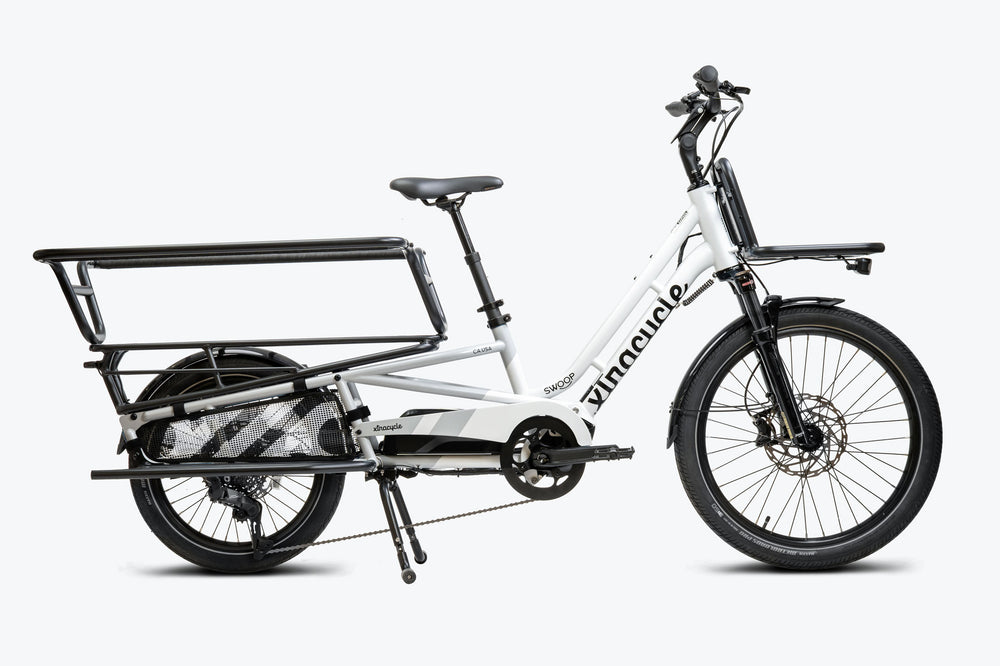

Tiburon (white/gray)

Free Shipping & Local Assembly (Contiguous USA only)

Seeing is Believing

Video resources to show you what we're all about

Introducing the Swoop ASM

Hooptie Passenger System

Shimano Electric Drive

How Will my Bike Ship?

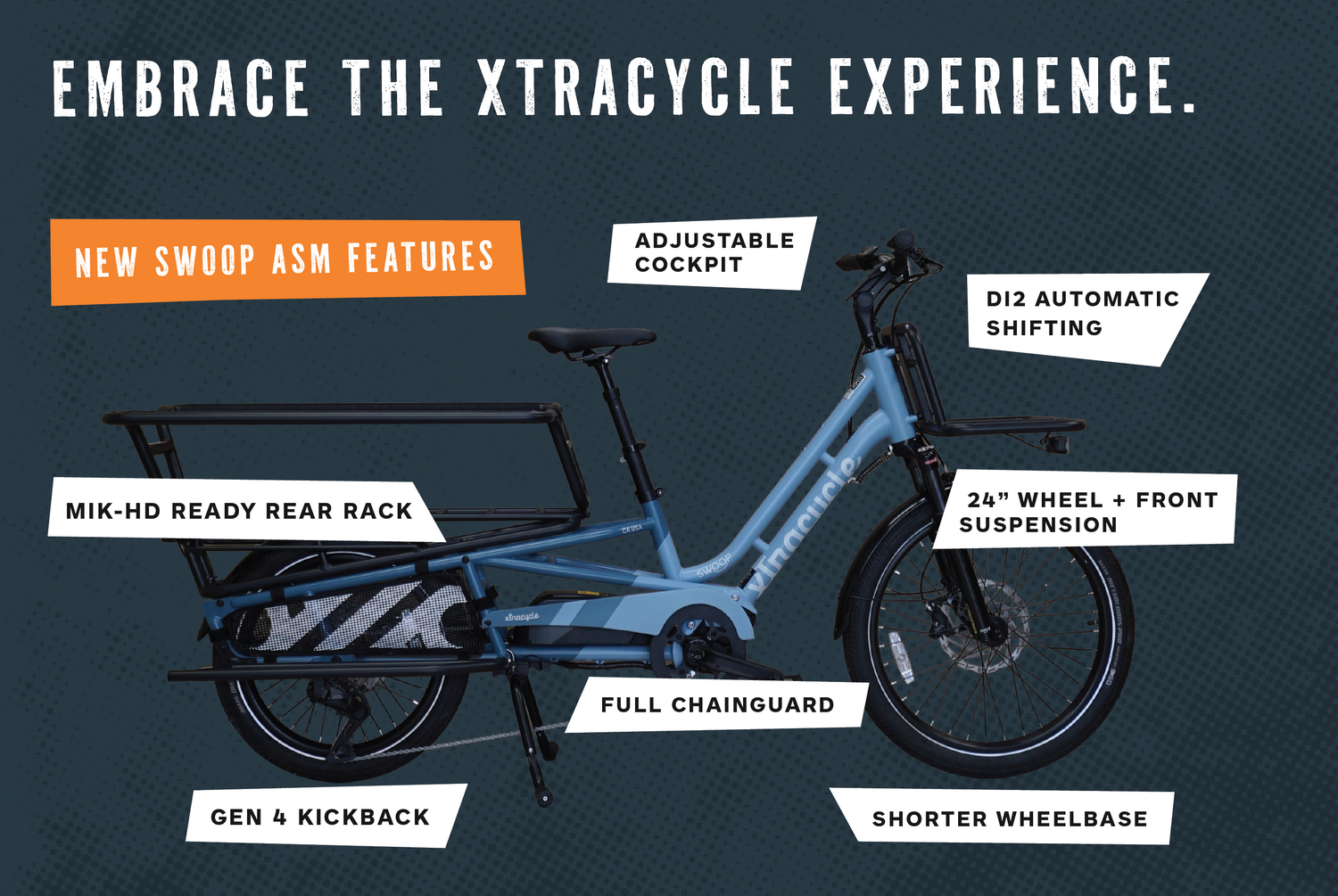

The Xtracycle Experience

THE NITTY GRITTY

Swoop ASM Geometry

Head tube length	7.9"/200 mm
Head tube Angle	71.5 degrees
Seat Tube Length	13.6"/346 mm
Seat Tube Angle	71 degrees
Reach	14.9"/378 mm
Stack	24.9"/632 mm
Effective top tube	23.25"/590 mm
Axle to Crown	18.5"/470 mm
Deck Length	32"/813 mm
Deck Height	22"/560 mm
Wheelbase	54"/1371 mm
Total length	82"/2082 mm

Swoop ASM Specs

Available Colors		Pacific Blue and Tiburon (white/gray)
Bike weight		68.4lbs/31.0kg (without incl. accessories and battery)
Frame	4130 Chromoly steel

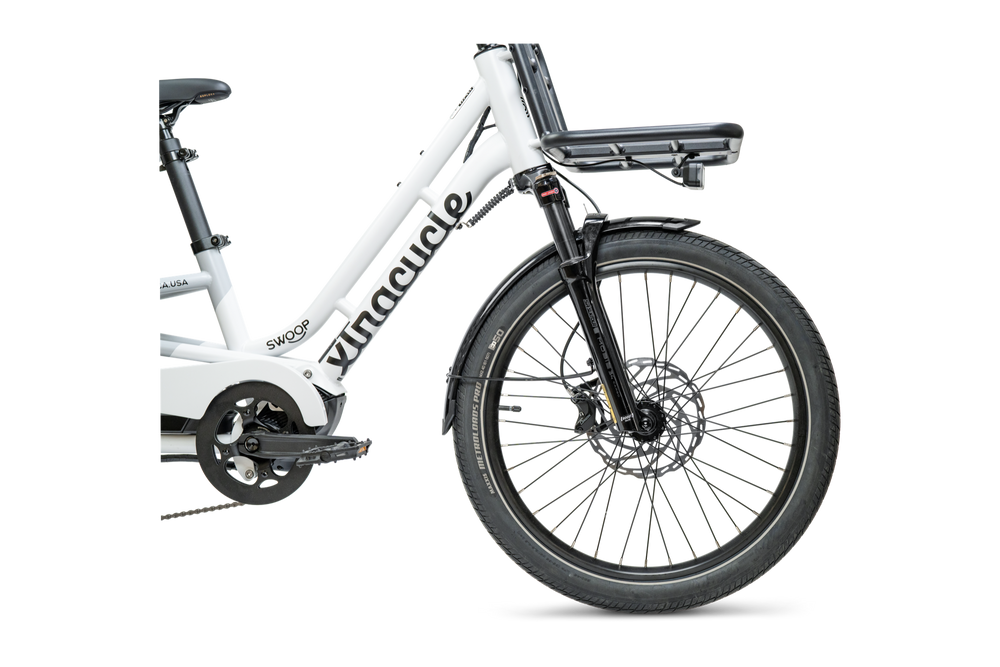

Fork	Suntour MOBIE34 CGO-Boost	24" (80mm travel),R:LO,L:COIL w/preload adjuster,steerer tube:1.5" to 1-1/8" tapered

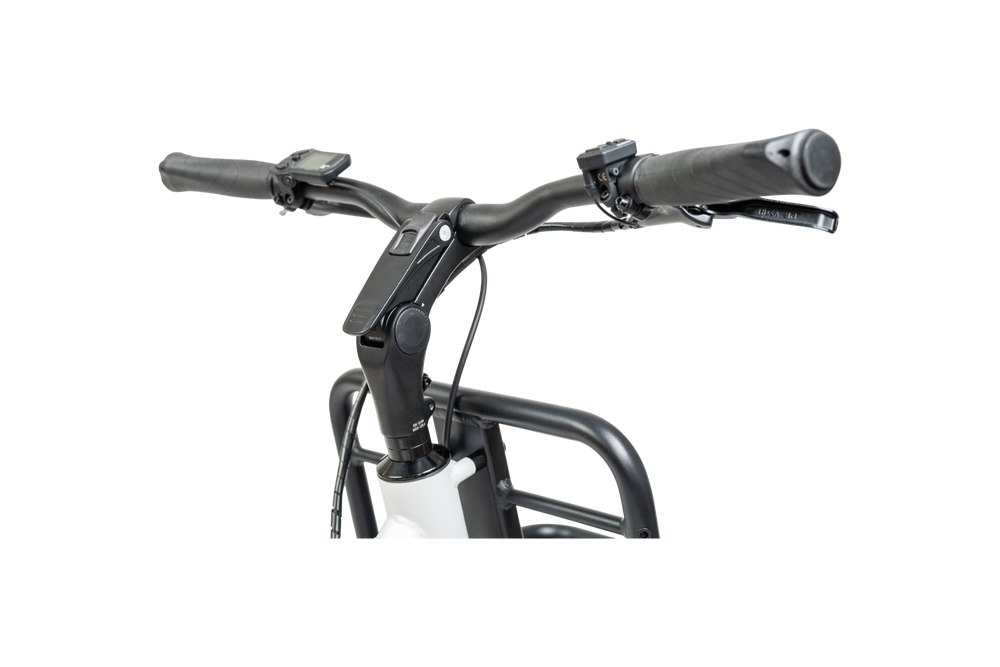

Handlebar	Promax HB-3188DB	31.8mm bar bore, 660mm width, 18 degree backsweep, 25 degree rise, 25mm rise
Grips	Velo VLG-649AD3	22.2x1135mm
Stem	Zoom/HL TDS-C637-8	28.6mm Adjustable, 31.8mm bar bore
Headset	Gineyea GH-580-5	28.6x52/56x39.8mm, seals bearing 1.5"
Saddle	Sele Royale A069HR0008014	Explora Moderate
Seat post	Zido JP-A830	34.9x300mm
Dropper post	Zoom SPD-602	30.9mmx60mm travel dropper
Seat clamps		Alloy, seat tube collar 40mm QR, seat post collar 34.9mm QR

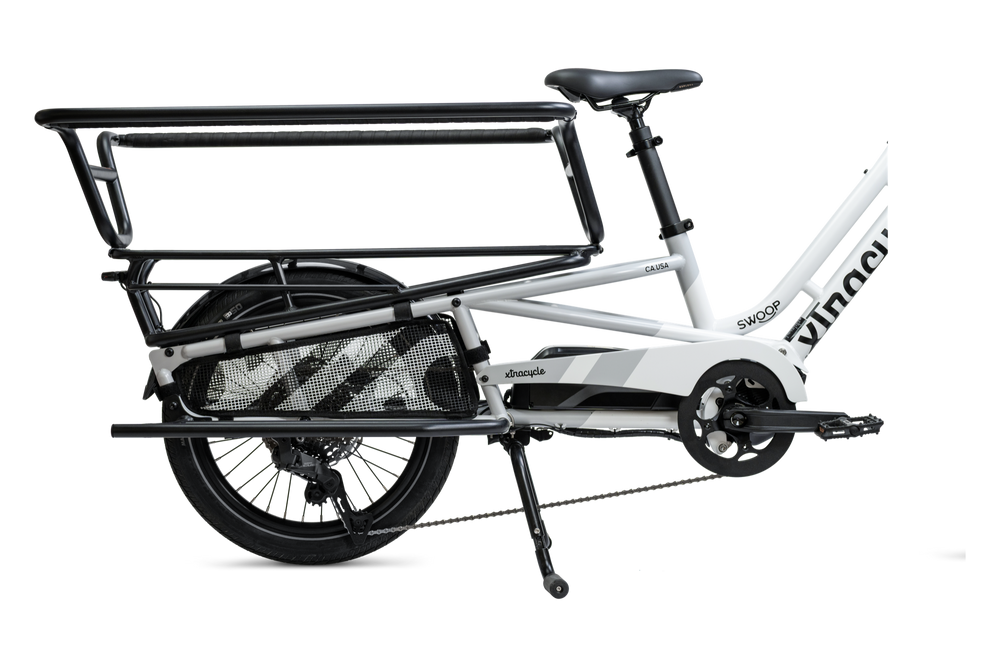

Rear deck	Xtracycle	MIK-HD compatible
Brakes	Tektro HD-M750	Hydraulic Disc Brake, open system with mineral oil, 2 finger lever, 4-piston caliper
Cabling	Internal
Rotor (F/R)	Tektro TR203-17	203mm / 2.3mm thickness
Shifters	Shimano SW-EN600R	for Cues Di2
Derailleur	Shimano RD-U6050	Cues Di2 10 speed

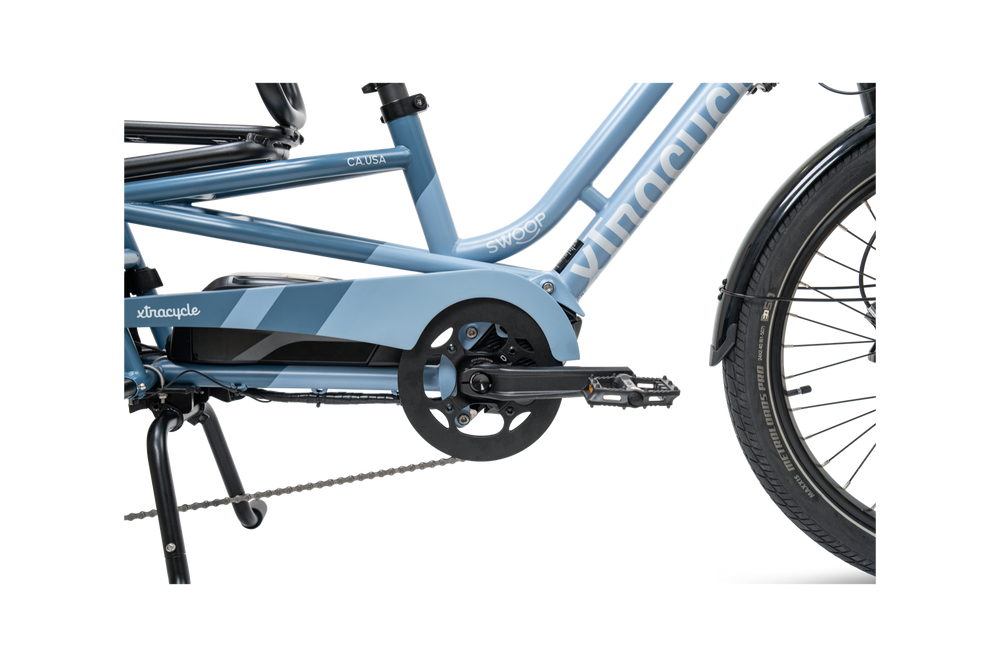

Crank	Samox	Alloy 170mm
Chainring	Samox P202	46T Super Narrow Alloy Chainring, w/EP01a-She80-Dg-C50, Alloy Spider, BCD 104, C.L. 50mm
Cassette	Shimano CS-LG400-10	11-43T 10 speed for cues
Chain	Shimano CN-LG500	Linkglide chain for 10 speed
Pedal	VP-535	One-Piece Nylon
Front hub	KT KT-TWXF	13G x 36H x 110mm, for 15mm thru axle, 6 bolt rotor mount
Rear hub	KT KT-H5TR-5	13G x 36H x 148mm, 6 bolt rotor mount, C.L.50mm, Freehub for 10spd, M12 x P1.5 Thru Axle
Front rim	WTB/7DR DR-DP29-TL	24"x1.5, 13G x 36H, Alloy, Double Wall
Rear rim	WTB/7DR DR-DP29-TL	20"x1.5, 13G x 36H, Alloy, Double Wall
Spokes	Hai Cherne 13G	72 PCS Stainless Spoke w/14mm Brass Nipples
Tires	Maxxis Metroloads	F:24"x2.4" R:20"x2.4", MaxxProtect E50
Front light	Sate-lite C18	150Lux/300 lumen
Rear light	Sate-lite M15	220 degree viewing angle
E-assist	Shimano STEPS EP6 Cargo
Display	Shimano SC-EN500
Charger	Shimano STEPS EC-E6002	120 V AC, 50 - 60 Hz, 2 amp
Battery	Shimano STEPS BT-EN606-A	630wH (frame, external), up to 60mi per charge (depending on riding conditions)
E-assist class	Class 3
Max e-assist speed	28 mph
Also includes		Hooptie, Footrests, Wheel covers, PorterRack, Fenders, Kickback 4
Specifications are subject to change without notice.

Shipping your bike

Direct Home Delivery ($400): Get your bike delivered fully assembled, ready to ride, in our Big Box of Happiness anywhere in the continental United States. This premium assembly and delivery service comes with our 15 day, 50-mile trial and hassle-free return. Fully assembled bikes ship within 2 weeks. Delivery times vary based on location. For Canada, please see Shipping Xtracycle Bikes to Canada: What to know.

Local Assembly (free): We’ll ship your new bike to a local bike shop in your area through the Beeline Connect network. Expert mechanics will assemble your bike and have it available for pick up at your convenience. Select your preferred shop at check out. Pick up availability varies by location.

Home Assembly (free): Looking to DIY your bike build or work with your local bike shop for assembly? This option is for you. Choose “unassembled” and we will ship your bike and accessories directly to you for free. Unassembled bikes ship within 2 business days. Delivery times vary based on location. We recommend all bikes assembled at home be looked over by a bike shop before use to ensure proper assembly.

Local delivery ($175): If you are located in the SF Bay Area or NYC, we’ll get your bike fully assembled and sent directly to your home, ready to ride, for $175.

Local pick-up (free): Pick up your bike fully built in-store at either of SF Bay Area or NYC locations.

Warranty

The Xtracycle warranty covers each steel made frame and fork of the bicycle or e-bike against defects in manufacturing and materials for the lifetime of the bike for the original owner for personal use.

Aluminum frames and suspension forks are covered for five (5) years against defects in manufacturing and materials for the original owner for personal use.

Commercial use warranty is valid for one (1) year for the original owner for commercial use only, regardless of frame/fork material. Please see the Terms and Conditions page for our full Warranty Policy. Please see the Terms and Conditions page for our full Warranty Policy.
