Swoop

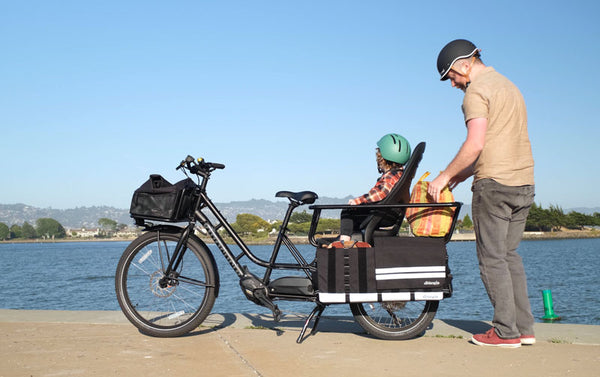

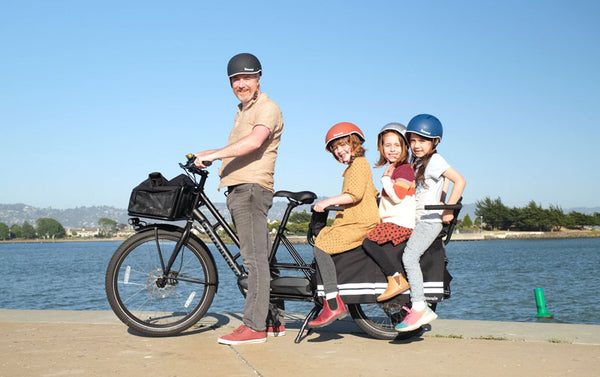

The Ultimate Kid Hauler

Perfect for families carrying multiple kids & friends. The swooping step-thru frame and perfectly balanced geometry makes the Swoop easy to share and a joy to ride. The low center of gravity promises it handles just like your favorite bike, even when loaded up.

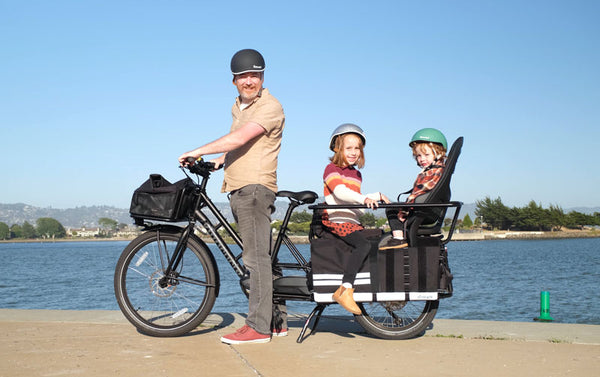

This bike fits two kid seats.

This is the Swoop Class 3, with a Shimano EP6 mid-drive motor.

Black (matte) Vista Blue
  • 58
  • 7

Let's Outfit your Swoop

Accessorize Your Bike Longtail HooptieMagicCarpetBoomBoxEveryday BikePackThule Yepp 2 Maxi Baby Seat

Everyday Rider Swoop Bundle

 $590.00

  • Hooptie
  • MagicCarpet (backordered, will ship once restocked)
  • BoomBox
  • Everyday BikePack

Bundle only available with purchase of a bike

The Ultimate Family Bike That Moves You, All Throughout Life

You are that SuperParent, ready to ditch the car keys, carbon emissions, and congested streets—and still able to get the kids to soccer practice early. Designed for ease of loading and handling, the Swoop is your instrument for going all-in on the cargo bike lifestyle. The Swoop instantly becomes your go-to vehicle for school drop-offs, quick coffee runs, cross-town errands and scenic weekend cruises. Is that your minivan looking nervous?

.

Seeing is Believing

Video resources to show you what we're all about

Free Shipping & Assembly

getting a cargo bike in your life is has never been easier

Bay Area Flagship Store Pick-Up

Have your bike built by the pros at Xtracycle

More Info »

NYC Showroom Pick-Up

Expert assembly & hassle-free pick-up from our NYC partners, Priority Bicycles

More Info »

Pick-Up at a Local Bike Shop

Choose from a list of certified Beeline Connect network shops at checkout

More Info »

Anatomy of a Perfect Cargo Bike

With it's signature swooping step-thru frame geometry, the Swoop is the best universal fit cargo bike on the market. No other bike can comfortably hold as much cargo and safely carry as many passengers, while still being shareable for riders from 4'11" to 6'7".

Swoop Image of the Xtracycle Swoop, calling out the following features: upright riding, easy step-thru design, up-front cargo options, fenders & LED lights, high-roll front wheel, 4 piston hydraulic brakes, Shimano high torque motor, 630Wh 60 mile battery, dual leg kickstand, carry gear & groceries, low center of gravity, room for 3 with multiple configurations

Details Matter

Shimano Hi-Torque eBike System

The Shimano STEPS EP6 motor delivers up to 85Nm of torque for hilly terrain & heavy loads. With up to 400% of e-assist, you’ll be cruising up hills, no matter your load.

Shimano Extended Range Battery

With 630 watt-hours, you’ll be able to ride farther without having to stop & plug-in, up to 60 miles on a single charge. That's 20% more juice than a comparable stock battery.

Intuitive Controls

The E-series cycling computer gives you easy handlebar access to control your e-bike system. With a large display & easy to use buttons, you’ll spend less time thinking about your assist level and more time enjoying the ride.

Premium Componentry

Precision shifting and a clutch rear derailleur give you quick gear changes over any terrain. Paired with a wide range cassette, hills won't stand a chance slowing your down.

4-Piston Hydraulic Brakes

Shimano Tektro hydraulic disc brakes offer more power for braking, and self-adjust to give you the best stopping power with minimal wear.

Easy to Share Frame

The lowest step-over height and tall seat post makes the Swoop easy to adjust & share between riders of varying heights.

Your Bike, Your Way

Every Xtracycle is compatible with our full suite of passenger & cargo carrying accessories. Add to Cart and outfit your slick hauling machine using our interactive Accessorizor

Included with your Bike

U-Tube footrests

secure support for feet & cargo, and even towing bikes

FreeLoader Too sling bags

collapsible bags at the ready that double as wheel-guards for little legs more info »

KickBack3 center stand

our third gen. solid & stable dual leg kickstand

Front & Rear Lights

see and be seen day or night with bright integrated LED lights

Full Metal Fenders

thick aluminum fenders built for everyday use

Add-Ons for Your Bike

Available in the Accesorizor

Longtail Hooptie

the original kid-carrying solution for your Xtracycle longtail
more info »

Kid Seat Ready

room for two kid seats on the rear deck more info »

MagicCarpet

padded seat cushion for a comfy ride more info »

PorterRack

sturdy front rack to strap down whatever you're carrying more info »

PorterPack

perfect for keeping loose cargo secure & at arms reach more info »

Everyday BikePack

insulated & convertible pannier-backpack, makes a perfect daily go-bag more info »

BoomBox

structured 40L cargo bag for everyday essentials more info »

THE NITTY GRITTY

Sizing
All current Xtracycle frames come in one size.

The Swoop can accomodate riders from 4'11" to 6'7".

If you are shorter than 5'3" you may wish to have a smaller handlebar stem to accommodate a shorter reach. If you are taller than 6'3" you may wish to have a longer seat post and stem for a more comfortable ride. You can add a FitKit to your cart in order to adjust your bike accordingly.

The FitKit sizes available are small (300mm seat post, 60mm stem) and large (450mm seat post, 120mm stem). All our bikes come with a 400mm seat post and 90mm stem.

Swoop geometry
Bike Geometry
1 Head tube length 7.75" 197 mm
2 Fork length 16.5" 419 mm
3 Fork offset 2.5" 63.5 mm
4 Seat tube 17" 432 mm
5 Reach 15" 381 mm
6 Stack 26" 660 mm
7 Effective top tube 22.5" 572 mm
8 Actual top tube 25.5" 648 mm
9 Step over height 18" 457 mm
10 Chainstay length 32" 813 mm
11 Deck length 30" 762 mm
12 Deck height 23" 584 mm
13 Wheel base 56.3" 1430 mm
14 Actual length 83" 2108 mm
Swoop 20mph component specs
Available colors Vista Blue (glossy) SOLD OUT
Bike weight 62.9 lbs
Max Gross Vehicle Weight 470 pounds
Frame material 4130 Chromoly steel
Fork material 4130 Chromoly steel
Handlebar Kalloy AL078L, 31.8mm, 45mm rise, 24-degree backsweep, 640mm width
Grips Marwi 7GP-03-L, 125mm long
Stem Kalloy AS007N. Available lengths: 60mm (S), 90mm (M), 120mm (L)
Headset FSA No. 18
Saddle Xtracycle Comfort Saddle (2021)
Seat post Kalloy SP3D1, 31.6mm. Available lengths: 300mm (S), 400mm (M), 450mm (L)
Seat clamp (collar) Xtracycle LF-5233 34.9mm bolt-on
Kickstand KickBack 3
Rear rack Longtail RearRack
Brake levers Tektro M745
Cabling Internal
Front brake Tektro M745, 4 piston hydraulic
Front rotor Shimano SM-RT64, 180mm
Rear brake Tektro M745, 4 piston hydraulic
Rear rotor Shimano STEPS RT-EM600-M, 180mm
Front light Herrmans H-Black Pro E 6-12V (attached to fender)
Rear light Herrmans H-TRACE E-BIKE 6-12V (included)
Shifters SRAM NX 11-S trigger shifter with X-ACTUATION (Model number SL-NX-1-A1)
Front derailleur (none)
Rear derailleur Sram NX11 X-HORIZON (Model number RD-NX-1-A1)
Crank Shimano FC-EM600 or FSA CK-752, 170mm
Chainring FSA 42 tooth cog
Cassette SRAM GX PG-1130 A1, 11-speed, 11 tooth - 42 tooth
Chain e-ONZE-111 Taya (174 Links)
E-assist Shimano STEPS EP8
E-assist cycling computer Shimano SC-E5003
Charger Shimano STEPS EC-E6002 (120 V AC, 50 - 60 Hz, 2 amp)
Battery Shimano STEPS BT-E8016, 630 wH (downtube, external), up to 60mi per charge depending on riding conditions and load
Front hub KT QL-XC2F, 15mm, 100mm thru axle
Rear hub KT QL-XC2R, 10mm, 135mm bolt-on
Front rim 26" Alex DM24, 36H A/V 13 gauge
Rear rim 20" Alex DM24, 36H A/V 13 gauge
Spokes Pillar 13 gauge stainless w/PB13 14L brass nipples
Tires Front: Schwalbe Super Moto-X HS 439, 26" x 2.4"; Rear: Schwalbe Super Moto-X HS 439, 20" x 2.4"
Tire compatibility 26" and 20" only, max width of 2.4"
Fenders Aluminum (included)
Also includes FreeLoader Too, U-tubes (2021)
E-assist class Class 1
Max e-assist speed 20 mph
Specifications are subject to change without notice.
Swoop 28mph component specs
Available colors Vista Blue (glossy) or Black (matte)
Bike weight 62.9 lbs
Max Gross Vehicle Weight 470 pounds
Frame material 4130 Chromoly steel
Fork material 4130 Chromoly steel
Handlebar Kalloy AL078L, 31.8mm, 45mm rise, 24-degree backsweep, 640mm width
Grips Marwi 7GP-03-L, 125mm long
Stem Kalloy AS007N. Available lengths: 60mm (S), 90mm (M), 120mm (L)
Headset FSA No. 18
Saddle Xtracycle Comfort Saddle (2021)
Seat post Kalloy SP3D1, 31.6mm. Available lengths: 300mm (S), 400mm (M), 450mm (L)
Seat clamp (collar) Xtracycle LF-5233 34.9mm bolt-on
Kickstand KickBack 3
Rear rack Longtail RearRack
Brake levers Tektro M745
Cabling Internal
Front brake Tektro M745, 4 piston hydraulic
Front rotor Shimano SM-RT64, 180mm
Rear brake Tektro M745, 4 piston hydraulic
Rear rotor Shimano STEPS RT-EM600-M, 180mm
Front light Herrmans H-Black Pro E 6-12V (attached to fender)
Rear light Herrmans H-TRACE E-BIKE 6-12V (included)
Shifters Shimano SL-M4100-R 10-S Rapidfire Plus w/optical
Front derailleur (none)
Rear derailleur Shimano RD-M5120-SGS Deore 10/11-S Shadow Plus
Crank FSA CK-752, 170mm
Chainring FSA 42 tooth cog
Cassette Shimano CS-M4100-10 10-S 11-42 tooth
Chain KMC e10T Turbo 174L 10-S EPT Anti-Rust
E-assist Shimano STEPS EP6
E-assist cycling computer Shimano SC-EN500
Charger Shimano STEPS EC-E6002 (120 V AC, 50 - 60 Hz, 2 amp)
Battery Shimano STEPS BT-EN606, 630 wH (frame, external), up to 60mi per charge depending on riding conditions and load
Front hub KT QL-XC2F, 15mm, 100mm thru axle
Rear hub KT QL-XC2R, 10mm, 135mm bolt-on
Front rim 26" Alex DM24, 36H A/V 13 gauge
Rear rim 20" Alex DM24, 36H A/V 13 gauge
Spokes Pillar 13 gauge stainless w/PB13 14L brass nipples
Tires Front: Schwalbe Super Moto-X HS 439, 26" x 2.4"; Rear: Schwalbe Super Moto-X HS 439, 20" x 2.4"
Tire compatibility 26" and 20" only, max width of 2.4"
Fenders Aluminum (included)
Also includes FreeLoader Too, U-tubes (2021)
E-assist class Class 3
Max e-assist speed 28 mph
Specifications are subject to change without notice.
Compatibility

The Swoop is compatible with the following accessories: Longtail Hooptie, Longtail HalfHooptie, SnackBars, MagicCarpet, PorterRack, PorterPack (when a PorterRack is installed), Everyday BikePack, FreeLoader Too, U-Tubes, KickBack 3, EdgeRunner WheelSkirts, Yepp Nexxt Maxi.

An important note about child seats:
If you intend to install a Yepp child seat on the Shimano powered Swoop, you will want to get the Yepp Nexxt Maxi. For a complete list of compatible and incompatible child seats, please see the article on child seats here.

The Yepp Maxi is not compatible with the Shimano powered Swoop.

Shipping your bike

Direct Home Delivery ($400): Get your bike delivered fully assembled, ready to ride, in our Big Box of Happiness anywhere in the continental United States. This premium assembly and delivery service comes with our 15 day, 50-mile trial and hassle-free return. Fully assembled bikes ship within 2 weeks. Delivery times vary based on location. For Canada, please see Shipping Xtracycle Bikes to Canada: What to know.

Unassembled ($200): Looking to DIY your bike build or work with your local bike shop for assembly? This option is for you. Choose “unassembled” and we will ship your bike and accessories directly to you for a flat shipping fee of $200. Unassembled bikes ship within 2 business days. Delivery times vary based on location. We recommend all bikes assembled at home be looked over by a bike shop before use to ensure proper assembly.

Local delivery ($175): If you are located in the Bay Area, we’ll get your bike fully assembled and sent directly to your home, ready to ride, for $175.

Local pick-up (free): Pick up your bike fully built in-store and get it home however you’d like.

User Manual
Swoop 20mph assembly manual

Link to PDF

Swoop 28mph assembly manual

Link to PDF

Swoop assembly video

Link to video on Xtracycle YouTube channel

Shimano STEPS EP8 System - User manual

Link to PDF

Shimano STEPS EP6 System - User manual

Link to PDF

Shimano STEPS Battery and Charger - User manual

Link to PDF

Shimano STEPS SC-E5003 Cycling Computer - User manual

Link to PDF

Shimano STEPS SC-EN500 Cycling Computer - User manual

Link to PDF

Herrmans H-Black Pro (front light) - User manual

Link to PDF

Herrmans H-Trace e-bike (rear light) - User manual

Link to PDF

Warranty
Warranty

The Xtracycle warranty covers each steel made frame and fork of the bicycle or e-bike against defects in manufacturing and materials for the lifetime of the bike for the original owner for personal use.

Aluminum frames and suspension forks are covered for five (5) years against defects in manufacturing and materials for the original owner for personal use.

Commercial use warranty is valid for one (1) year for the original owner for commercial use only, regardless of frame/fork material. Please see the Terms and Conditions page for our full Warranty Policy. Please see the Terms and Conditions page for our full Warranty Policy.

Returns

Xtracycle Return Policy
